RAJAK – Thermal Imagers and Night Vision Devices

We are working towards the goal of complete self-reliance and indigenisation in the field of Night Vision Devices and towards this goal have made substantial advances in creating the necessary infrastructure such as Class 10,000 Clean Rooms with Class 100 Benches, in-house Environmental Stress Screening (ESS) Test facilities etc. Assembly, Testing and Manufacture of Night Vision Devices, Uncooled & Cooled Thermal Imaging Systems, 3rd Generation Image Intensifier Tubes of FoM >1800+ and the assembly and testing of complex Electro-Optic (E0) payloads are being undertaken.

A wide range of EO systems to meet every requirement at the best price / performance ratio is the strong point of our Optronics offerings. We have supplied Cooled Thermal Imagers to the Border Security Force (BSF), which are integrated to provide 24x7 Surveillance and Observation at the Border. We have also developed an Ultra Long-Range Observation System (LORROS equivalent) with detection ranges of more than 20km The system is operationally deployed at our National Borders and is also undergoing trials with the Indian Army. Tata A&D has supplied latest Gen3 FoM 1700+ Night Vision Devices to various Special Forces all over India, including National Security Guard (NSG), the foremost Counter Terrorism force in India. We have also supplied over 250 Indigenously Designed, Developed and Manufactured Uncooled Thermal Sights to the Indian Army Special Forces in Operational Areas. We have also bagged a prestigious order from the Indian Navy for the supply of high-end Helmet Mounted Night Sights for use by Navy’s Special Forces. The order was received after a stiff competition in a global tendering process. We have also successfully executed Export orders to international clients

Multipurpose Thermal Monocular ( RAJAK TMU-USR)

  • Day & Night Thermal monocular
  • Uncooled Detector: VGA, 17μm
  • Hand-held, Helmet and weapon mount
  • <420 grams with battery
  • 100m range
  • Battery endurance >8 hrs

Multipurpose Night Vision Monocular with Laser Illuminator (RAJAK I-122B-LI)

  • II Monocular
  • FOM 1700 + Gen III Tube
  • 100m Laser Illuminator
  • Hand-held, Helmet and weapon mount
  • <320 grams
  • 250m Detection & 130m Recognition
    • (man target)
  • Battery Endurance > 40 hrs

Multipurpose Night Vision Monocular (RAJAK I-122B)

  • II Monocular
  • FOM 1700+ Gen III Tube
  • Hand-held, Helmet and weapon mount
  • < 320 grams
  • 250m Detection & 130m Recognition (man target)
  • Battery Endurance >40 hrs

Night Vision Goggle (RAJAK I-7D)

  • II Goggle
  • FOM 1700 + Gen III Tube
  • Hand-held and Helmet mount
  • < 550 grams
  • 250m Detection & 130m Recognition (man target)
  • Battery Endurance >40 hrs

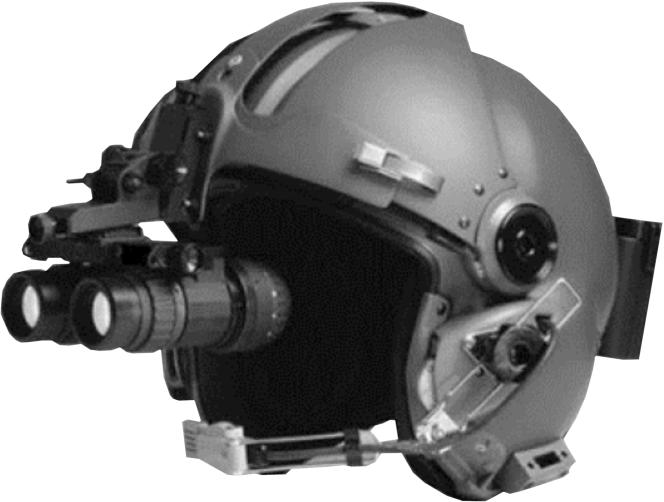

Aviation Goggle (RAJAK ANVG)

  • Aviation Night Vision Binocular
  • Certified System
  • FOM 2000 + Gen III Tube
  • Mountable on almost all Aviation Helmet
  • < 650 grams
  • Battery Endurance >40 hrs

Binocular Night Vision Goggle (RAJAK I-222B)

  • Twin Tube Binocular
  • FOM 1700 + Gen III Tube
  • Hand-held and Helmet mount
  • < 800 grams
  • 250m Detection & 130m Recognition (man target)
  • Battery Endurance > 40 hrs

Thermal Weapon Sight - Short Range (RAJAK TWS-SR)

  • Thermal Weapon Sight
  • Uncooled Detector: VGA, 17μm
  • 400m Detection and 200m Recognition (man target)
  • Customisable Reticle with easy zeroing
  • Inbuilt Video Recording (Optional)
  • Weight <800 grams
  • Battery endurance >8 hrs (with Recording)
  • Extensive Weapon Mount accessories

Thermal Weapon Sight - Long Range (RAJAK TWS-LR)

  • Thermal Weapon Sight
  • Uncooled Detector: VGA, 17μm
  • 1000m Detection and 700m Recognition (man target)
  • Customisable Reticle with easy zeroing
  • Inbuilt Video Recording (Optional)
  • Weight <1.2kg
  • Battery endurance >8 hrs (with Recording)
  • Extensive Weapon Mount accessories

Thermal Weapon Sight - Medium Range (RAJAK TWS-MR)

  • Thermal Weapon Sight
  • Uncooled Detector: VGA, 17μm
  • 700m Detection and 500m Recognition (man target)
  • Customisable Reticle with easy zeroing
  • Inbuilt Video Recording (Optional)
  • Weight <1.0kg
  • Battery endurance >8 hrs (with Recording)
  • Extensive Weapon Mount accessories

Night Vision Weapon Sight (II)- 3X (RAJAK I-357A)

  • II based 3X Weapon Sight
  • FOM 1700 + Gen III Tube
  • 13° FOV
  • Replaceable reticle
  • Kinematic Mount
  • <1.2kg
  • 400m Detection & 210m Recognition (man target)
  • Battery Endurance >60 hrs

Night Vision Weapon Sight (II)- 6X (RAJAK I-685C)

  • II based 6X Weapon Sight
  • FOM 1700 + Gen III Tube
  • 6.8° FOV
  • Replaceable reticle
  • Kinematic Mount
  • <1.6kg
  • 620m Detection & 340m Recognition (man target)
  • Battery Endurance >60 hrs

Night Vision Weapon Sight (II)- 4X (RAJAK I-467C)

  • II based 4X Weapon Sight
  • FOM 1700 + Gen III Tube
  • 10.3° FOV
  • Replaceable reticle
  • Kinematic Mount
  • <1.3kg
  • 475m Detection & 250m Recognition (man target)
  • Battery Endurance >60 hrs

Uncooled Thermal Handheld Monocular (RAJAK TMU-SR)

  • Thermal Monocular
  • Uncooled Detector: VGA, 17μm
  • 400m Detection and 200m Recognition (man target)
  • Manual Focus
  • Stadiametric Ranging
  • Inbuilt Video Recording (Optional)
  • Weight <750 grams
  • Battery endurance >8 hrs (with Recording)

Uncooled Thermal Handheld Monocular (RAJAK TMU-LR)

  • Thermal Monocular
  • Uncooled Detector: VGA, 17μm
  • 1000m Detection and 700m Recognition (man target)
  • Manual Focus
  • Stadiametric Ranging
  • Inbuilt Video Recording (Optional)
  • Weight <1.1kg
  • Battery endurance >8 hrs (with Recording)

Uncooled Thermal Handheld Monocular (RAJAK TMU-MR)

  • Thermal Monocular
  • Uncooled Detector : VGA, 17μm
  • 700m Detection and 500m Recognition (man target)
  • Manual Focus
  • Stadiametric Ranging
  • Inbuilt Video Recording (Optional)
  • Weight <1.0kg
  • Battery endurance >8 hrs (with Recording)

Uncooled HHTI- Long Range Binocular (RAJAK TBU-LR-2)

  • Long Range Thermal Binocular
  • Uncooled Detector: VGA, 17μm
  • 1000m Detection and 700m Recognition (man target)
  • Manual Focus
  • Stadiametric Ranging
  • Inbuilt Video Recording (Optional)
  • Weight <1.3kg
  • Battery endurance >8 hrs (with Recording)
  • Handheld and Tripod Mount

Uncooled Multifunction HHTI (RAJAK TBU-DNL-1)

  • Multi-Sensor Uncooled Binocular
  • Day, Night and Fused video
  • Uncooled Detector: VGA, 17μm
  • Remote Control and Streaming over network
  • 30X Day Camera
  • LRF >3km range
  • DMC and GPS
  • 1500m Detection and 1000m Recognition (man target)
  • Manual Focus TI Lens
  • Inbuilt Video Recording (Optional)
  • Weight <3.5kg
  • Battery endurance >4 hrs (with Recording)
  • Handheld, Tripod Mount and Pan Tilt Mount

Uncooled HHTI- Extended Range DFOV (RAJAK TBU-LR-D1)

  • Long Range Thermal Binocular
  • Dual Field of View
  • Uncooled Detector: VGA, 17μm
  • 1500m Detection and 800m Recognition (man target)
  • Manual Focus
  • Stadiametric Ranging
  • Inbuilt Video Recording (Optional)
  • Weight <1.8kg
  • Battery endurance >15 hrs
  • Handheld and Tripod Mount

Cooled HHTI (RAJAK TBC)

  • Long Range Thermal Binocular
  • Cooled Detector: 640 x 512 pixels, 15μm
  • Remote Control and Streaming over network
  • 4000m Detection and 1500m Recognition (man target)
  • Continuous Zoom Lens
  • Inbuilt Video Recording (Optional)
  • Inbuilt Pan Tilt Control
  • Weight <2.5kg
  • Battery endurance >4 hrs (with Recording)
  • Handheld, Tripod Mount and Pan Tilt Mount

Cooled Multifunction HHTI with LRF (RAJAK TBC-DNL-1)

  • Multi-Sensor Cooled Binocular
  • Day, Night and Fused video
  • Cooled Detector: 640 x 512 pixels, 15μm
  • Remote Control and Streaming over network
  • 30X Day Camera
  • LRF >6km range
  • DMC and GPS
  • 4000m Detection and 1500m Recognition (man target)
  • Continuous Zoom Lens
  • Inbuilt Video Recording (Optional)
  • Weight <4.3kg
  • Battery endurance >3.5 hrs (with Recording)
  • Handheld, Tripod Mount and Pan Tilt Mount

Cooled Multifunction HHTI (RAJAK TBC-DN-1)

  • Multi-Sensor Cooled Binocular
  • Day, Night and Fused video
  • Cooled Detector: 640 x 512 pixels, 15μm
  • Remote Control and Streaming over network
  • 30X Day Camera
  • DMC and GPS
  • 4000m Detection and 1500m Recognition (man target)
  • Continuous Zoom Lens
  • Inbuilt Video Recording (Optional)
  • Inbuilt Pan Tilt Control
  • Weight <4.0kg
  • Battery endurance >3.5 hrs (with Recording)
  • Handheld, Tripod Mount and Pan Tilt Mount

Night Vision Binocular (II)- 4X (RAJAK I-704A)

  • Hand Held II Binocular
  • FOM 1700 + Gen III Tube
  • 4.1X Mangification
  • 9° FOV
  • 990m Detection & 420m Recognition (man target)
  • Weight < 955 grams

Night Vision Binocular (II)- 6X (RAJAK I-706A)

  • Hand Held II Binocular
  • FOM 1700 + Gen III Tube
  • 5.8X Mangification
  • 6.8° FOV
  • 1020m Detection & 540m Recognition (man target)
  • Weight <1.3kg

Long Range Surveillance System (RAJAK-TRC-DN-1)

  • Pan Tilt Mounted Multi-Sensor System
  • Day, Night and Fused video
  • Cooled Detector: 640 x 512 pixels, 15μm
  • 30X Day Camera
  • 4000m Detection and 1500m Recognition (man target)
  • Continuous Zoom Lens
  • Remote Control and Streaming over network
  • Weight <20kg
  • Easily mounted on Tripod or Mast
  • Slew to Cue support with 3rd party sensors

Extended Long Range Surveillance System (RAJAK-TRC-DNL-2)

  • Pan Tilt Mounted Multi-Sensor System
  • Day, Night and Fused video
  • Cooled Detector: 640 x 512 pixels, 15μm
  • 30X Day Camera
  • LRF > 6km range.
  • 6000m Detection and 2500m Recognition (man target)
  • Continuous Zoom Lens
  • Remote Control and Streaming over network
  • Weight <20kg
  • Easily mounted on Tripod or Mast
  • Slew to Cue support with 3rd party sensors

Ultra Long Range Surveillance System (RAJAK TBC-DNL-ULR-1)

  • Pan Tilt Mounted Multi- Sensor System
  • Day, Night and Fused video
  • SWIR addon for visibility
    • through fog, smog, smoke (Optional)
  • >25km Range
  • Continuous Zoom Lens
  • Remote Control and Streaming over
    • network
  • Easy to Integrate within 10 mins.
  • Easily mounted on Tripod or Mast
  • Rugged operator console with 19" sunlight
    • readable display
  • Portable power pack for upto 20hrs of backup

Perimeter Security Sight (RAJAK TRU-DN-1)

  • Day Night Perimeter Surveillance camera
  • IP Streaming and ONVIF S Compatible
  • Day, Night and Fused video
  • Uncooled Detector: VGA, 17μm
  • 10X Day Camera
  • 1200m Detection and 800m Recognition (man target)
  • Fixed FOV TI Lens
  • Inbuilt Video Recording (Optional)
  • Inbuilt Pan Tilt Control
  • Weight <4kg with Pan Tilt
  • Slew to Cue integration support with 3rd party sensors

Driver's Night Sight (RAJAK DNS)

  • Thermal Driver's Night Sight
  • Drive under any conditions; in day, night and through dust, smoke and dirt
  • 40° Wide FOV
  • Uncooled Detector: VGA, 17μm
  • Range - 100m
  • 7" Rugged display for video viewing & control
  • Vehicle battery operated

Driver's Night Sight Periscopic (RAJAK DNSP)

  • Thermal Periscopic Sight with Ruggedised display
  • Form fit replacement for T90 tank
  • Drive under any conditions; in day, night and through dust, smoke and dirt
  • 40° Wide FOV
  • Uncooled Detector: VGA, 17μm
  • Range - 100m
  • 7" Rugged display for video viewing & control

Direct Fire Sight (RAJAK DFS)

  • Highly Rugged Direct Fire Sight
  • Suitable for Remote Weapon Station and Artillery
  • Inbuilt Ballistics
  • FOV Switching within 1 sec.
  • Integrated with DFOV Day Channel and Cooled TI
  • FPA Resolution: 640 x 512 pixels, 15μm pixel pitch
  • Range - 4000 m Det. and 2000 m Rec. (tank target)
  • LRF with 6km range
  • Easy FCS integration with video & control over IP or RS-422

Mobile Surveillance System (RAJAK MSS)

  • Surveillance System mounted on TATA XENON DC 4x4
  • 5-meter Penumatic retractable mast
  • Integrated with Full HD Day, Cooled Thermal Imager, DMC & GPS
  • Rugged Laptop based Console
  • Wireless communication upto 5Km
  • Pan & Tilt motorised, nx360 rotation
  • 24-hrs power backup with Genset charging options

Gen-III II Tubes (Inverting) (RAJAK 1520A-AUG)

  • Gen III, Inverting II Tube
  • Figure of Merit >1700+
  • 18mm Standard Diameter
  • High Efficiency Gallium Arsenide Photocathtode
  • High-gain, high-photosensitivity
  • Bright Source Protection
  • Autogated

Gen-III II Tubes (Non-Inverting) (RRAJAK 1521A-AUG)

  • Gen III, Non-Inverting II Tube
  • Figure of Merit >1700+
  • 18mm Standard Diameter
  • High Efficiency Gallium Arsenide Photocathtode
  • High-gain, high-photosensitivity
  • Bright Source Protection
  • Autogated

  • To cater to the requirements of large volume production orders, Tata Advanced Systems h a s implemented an Integrated Design to Manufacturing facility meeting the System Engineering requirements and Quality Standards for Defence equipment
  • 100k Class Clean Room that houses state- of-the-art PCB Assembly Lines along with PCB Assembly Inspection Equipment for automated PCB assembly and validation

STATE-OF-THE-ART PRODUCTION FACILITIES

  • 10K Class Clean Room for Precision electronics assembly that demands a higher degree of dust-free environment for Optronics
  • Automated Test Equipment (ATE) to improve the production testing efficiency and speed

  • Optronics manufacturing and testing facility, spread over an area of 15,000 sq. ft.
  • Latest generation equipment for Assembly and testing of Night vision products with high degree of Automation for higher productivity and repeatability
  • Multiple flow benches of Class 1000 for handling the assembly of precision Optronics equipments

  • Specialised Dark Rooms inside cleanroom for Image Intensifier Testing
  • 25 metres Dark Tunnel for testing Night Vision Devices
  • Stores with Dry Cabinets for humidity sensitive products
  • The set-up is quite extensive having a production capacity of about 1000 systems per month. This capacity can also be augmented to meet user requirements

Other Sensor Systems

RADAR SYSTEMS

Tata Advanced Systems was awarded Buy & Make (India) contracts for Surface Surveillance Radars (SSR) and 3D C/D Air Surveillance Radars (ASR) for Indian Navy

learn more
tataadvancedsystems

SONAR SYSTEMS

Tata Advanced Systems is manufacturing Portable Diver Detection Sonars (PDDS) under Transfer of Technology from the OEM.

learn more
tataadvancedsystems
tataadvancedsystems
tataadvancedsystems

By clicking "Accept" or continuing to use our site, you agree to our Website's Privacy Policy
